| 제품 속성 |
 |
 |
 |
 |
| 제품 모델 |

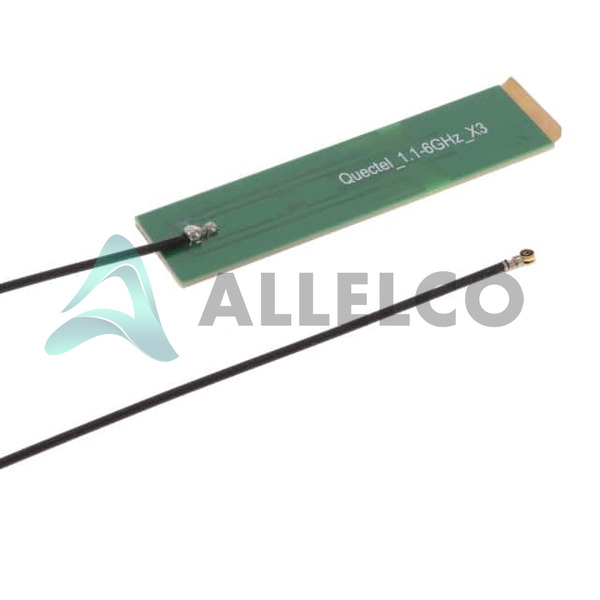

YP0009BA |
YP0009CA |
YP0009AA |
YP0201500000G |
| 제조사 |
Quectel |
Quectel |
Quectel |
Amphenol Anytek |
| 주파수 (센터 / 밴드) |
1.1GHz, 1.5GHz, 1.8GHz, 2.16GHz, 2.3GHz, 2.68GHz, 3.3GHz, 5GHz, 6GHz |
829MHz, 1.228GHz, 1.505GHz, 1.94GHz, 3.65GHz, 4.5GHz, 5.5GHz |
829MHz, 1.228GHz, 1.505GHz, 1.94GHz, 2.43GHz, 3.65GHz, 3.75GHz, 4.5GHz, 5.5GHz |
- |
| 종료 |
IPEX MHF4 |
IPEX MHF4 |
IPEX MHF4 |
- |
| VSWR |
2.77, 1.35, 2.42, 1.5, 1.45, 1.38, 1.47, 1.35, 1.08 |
1.96, 2.1, 2.19, 2.2, 2.31, 4.5 |
3 |
- |
| 안테나 유형 |
PCB Trace |
PCB Trace |
PCB Trace |
- |
| 밴드의 수 |
9 |
8 |
9 |
- |
| 주파수 범위 |
1.1GHz ~ 6GHz |
698MHz ~ 960MHz, 1.176GHz ~ 1.28GHz, 1.4GHz ~ 1.61GHz, 1.71GHz ~ 2.17GHz, 2.17GHz ~ 2.69GHz, 3.3GHz ~ 4GHz, 4GHz ~ 5GHz, 5GHz ~ 6GHz |
698MHz ~ 960MHz, 1.176GHz ~ 1.28GHz, 1.4GHz ~ 1.61GHz, 1.5GHz ~ 2.17GHz, 1.71GHz ~ 2.69GHz, 2.17GHz ~ 4GHz, 3.3GHz ~ 5GHZ, 4GHz ~ 6GHz, 5GHz ~ 6GHz |
- |
| 높이 (최대) |
0.037" (0.95mm) |
0.037" (0.95mm) |
0.037" (0.95mm) |
- |
| 반사 손실 |
- |
- |
- |
- |
| 침투 보호 |
- |
- |
- |
- |
| 이득 |
-0.83dBi, 2.8dBi, 2.88dBi, 2.1dBi, 2.3dBi, 3.22dBi, 1.36dBi, 1.49dBi, 1.13dBi |
0.51dBi, 2.4dBi, 4.5dBi, 3.8dBi, 3.9dBi, 2.3dBi |
2.3dBi, 1.8dBi, 3.2dBi, 4.42dBi, 2.8dBi, 4.2dBi, 3.6dBi |
- |
| 실장 형 |
Adhesive |
Adhesive |
Adhesive |
Through Hole |
| 패키지 |
Bag |
Bag |
Bag |
Bulk |
| 응용 프로그램 |
6G |
6G |
2G, 3G, 4G, 5G |
- |
| 풍모 |
Cable - 193mm |
Cable - 188.5mm |
- |
Interlocking (Side), Mid Wire Entry Level |
| 주파수 그룹 |
Wide Band |
Wide Band |
Wide Band |
- |
| RF 제품군 / 표준 |
Cellular |
Cellular |
Cellular |
- |
| 연속 |
- |
- |
- |
YP |
